Unintended Car Movement Protection system (UCMP) prevents car unintended movement in the door opening area, prevents the risk of accidental movement of the car, and protects the safety ofthe passengers.
Direct Landing Technology For Steady And Comfortable Experience.
Noise Reduction Device, Quite Ride Enjoyment.
Full Load By-pass Function Reducing The Waiting Time In The Peak Time.
High And Reliable Leveling Switch, Accurate Control Without Interference.
| NO. | Specification | 630 | 800 | 1050 | 1350 | 1600 | ||||||||
| 1 | Capacity (kg) | 630 | 800 | 1050 | 1350 | 1600 | ||||||||

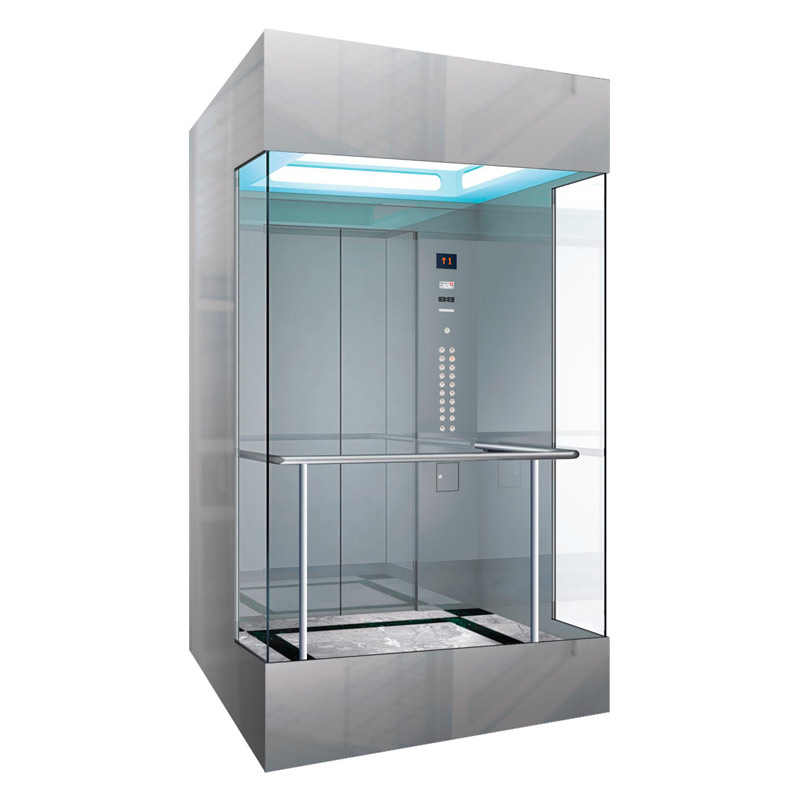

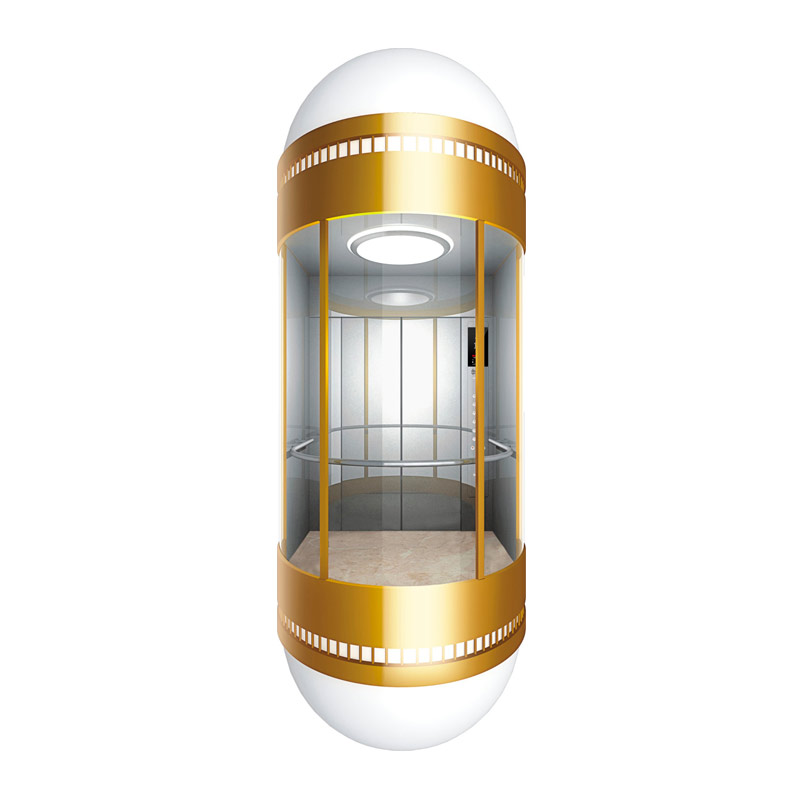

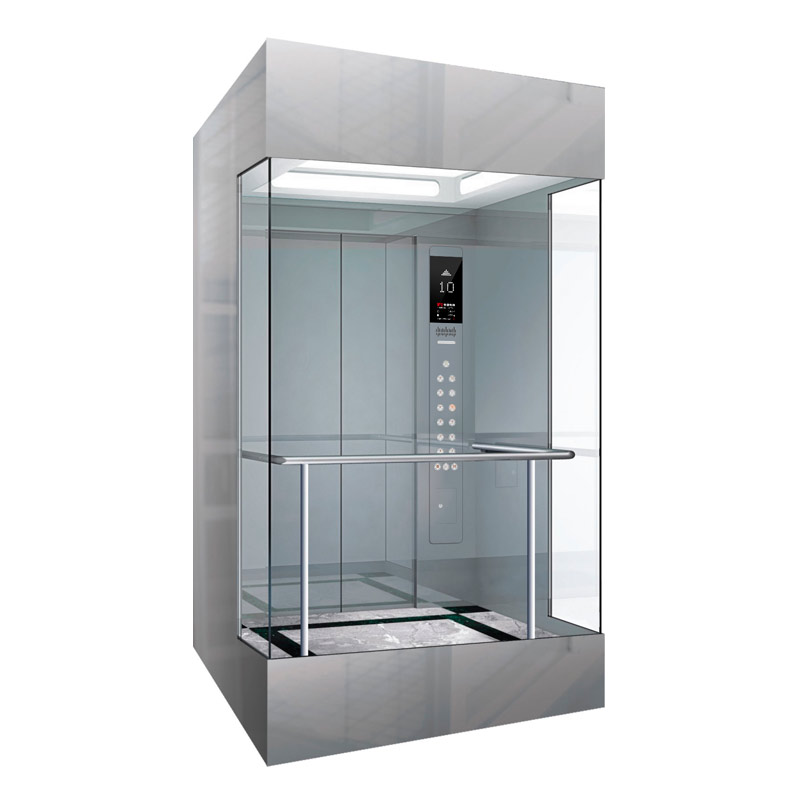

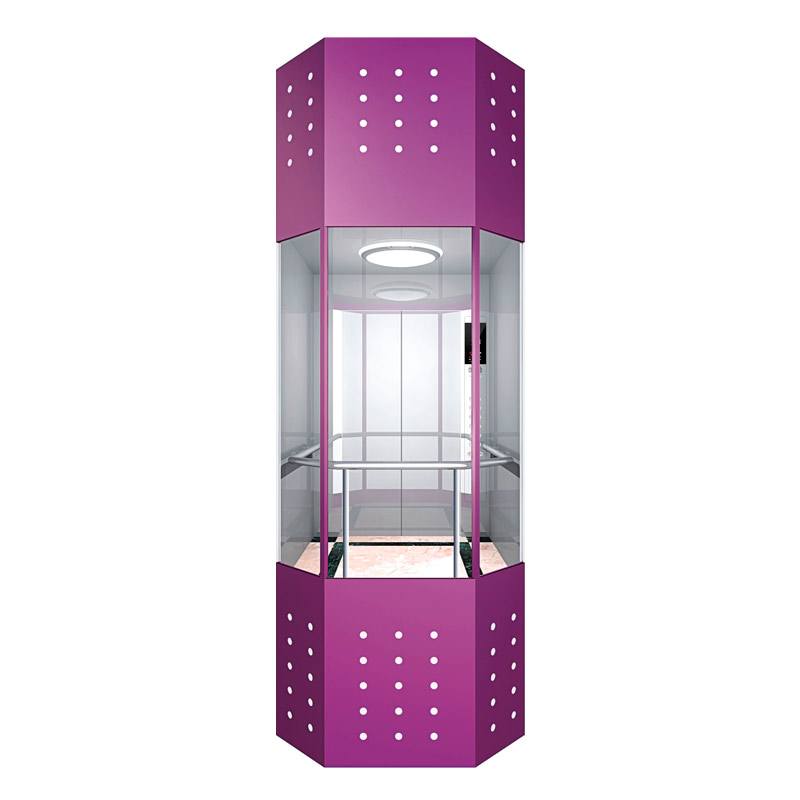

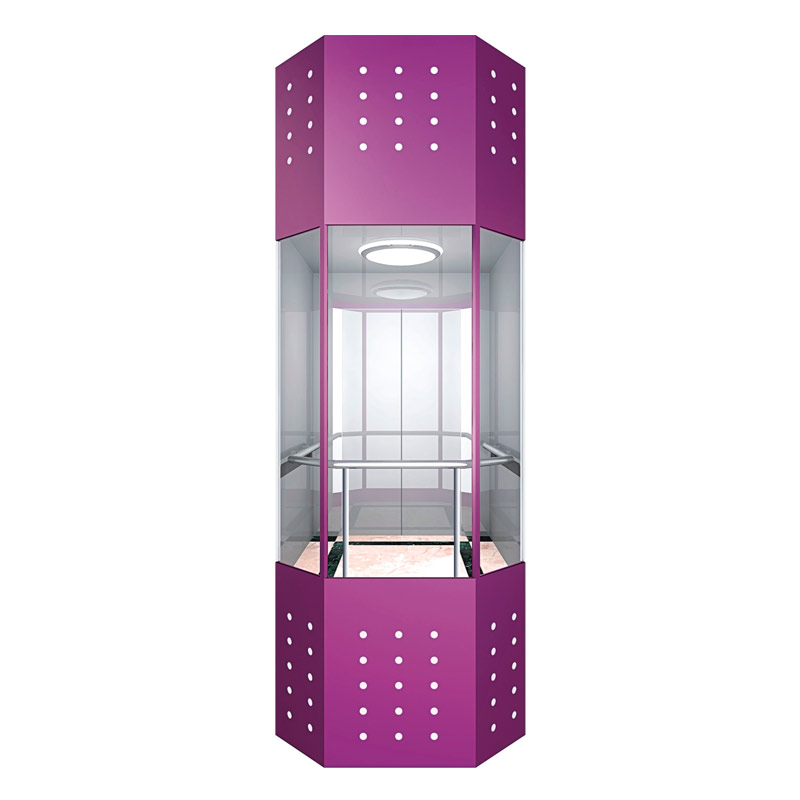

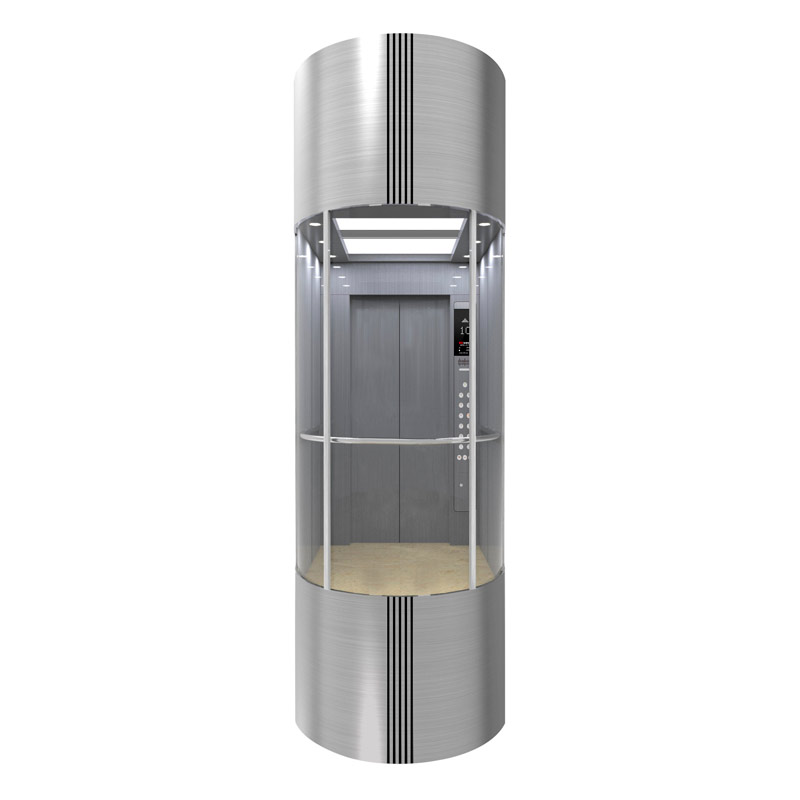

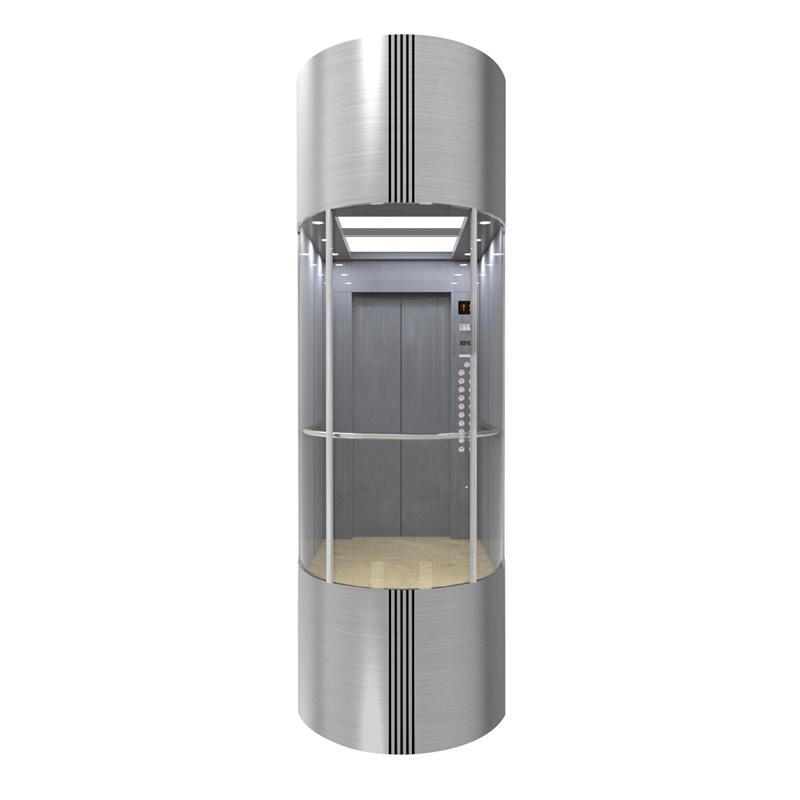

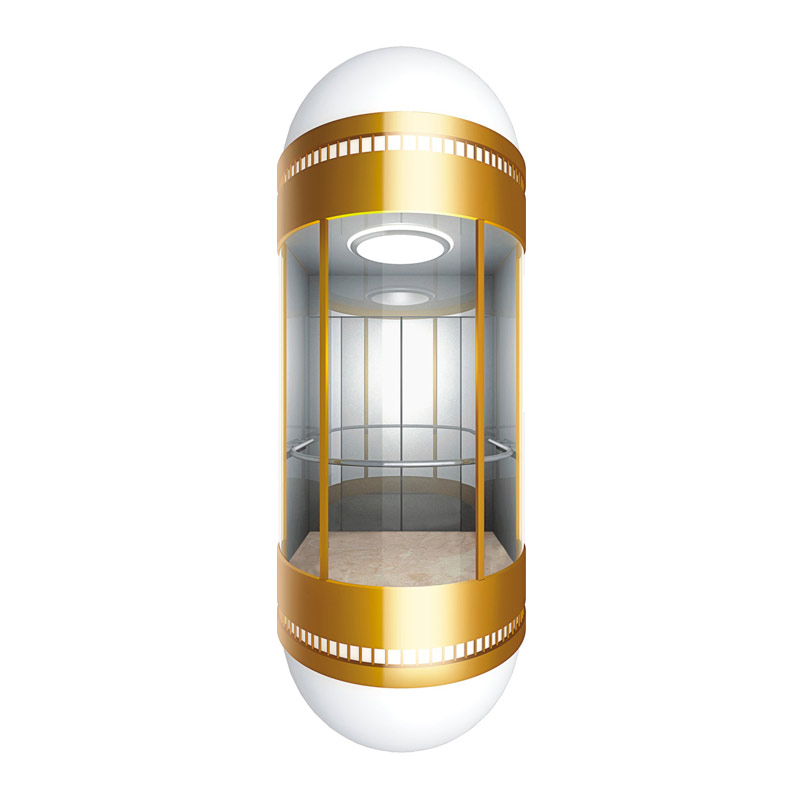

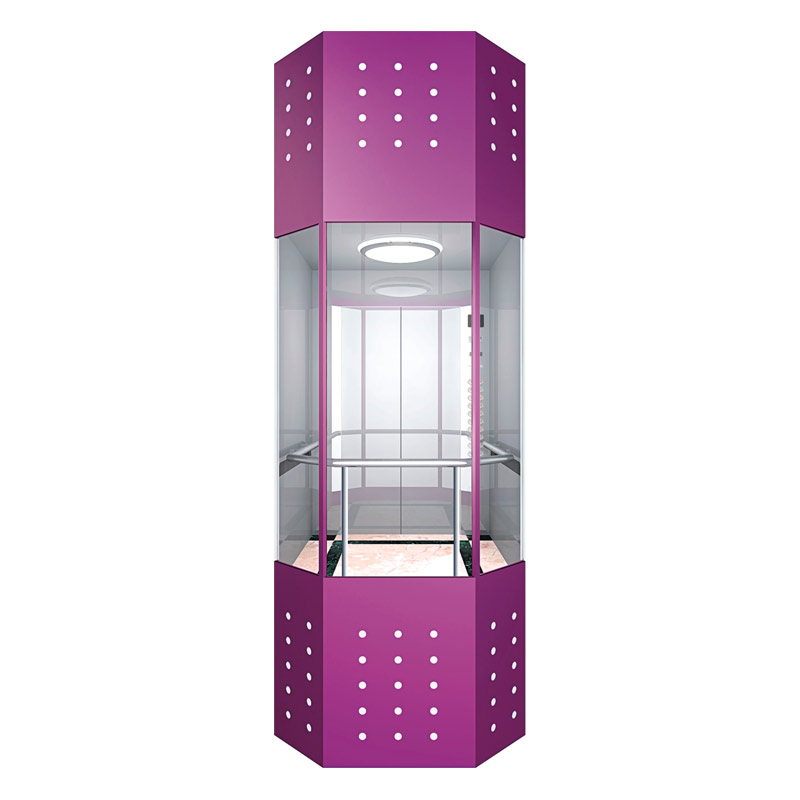

| 2 | Shape | square | hemicycle | lozenge | square | hemicycle | lozenge | square | hemicycle | lozenge | hemicycle | hemicycle | ||
| 3 | Speed (m/s) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | ||||
| -- | -- | -- | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||||
| -- | -- | -- | -- | -- | -- | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||||
| 4 | Operation System | full collective selection operation | ||||||||||||
| 5 | Driving System | VVVF | ||||||||||||
| 6 | Door Operator System | VVVF | ||||||||||||
| 7 | Traction Machine | Permanent Magnet Synchronous Gearless type | ||||||||||||
| 8 | Control System | CTRL80 | ||||||||||||
| 10 | Car Dimension mm width*depth | 1100*1400 | 1100*1550 | 1100*1550 | 1300*1450 | 1300*1600 | 1300*1600 | 1500*1600 | 1500*1700 | 1500*1700 | 1700*1900 | 1700*2200 | ||
| 13 | Shaft Size mm W*H | 2050*1850 | 2000*2050 | 2000*2050 | 2100*1950 | 2100*2050 | 2100*2050 | 2400*2050 | 2400*2150 | 2400*2150 | 2600*2350 | 2600*2650 | ||
